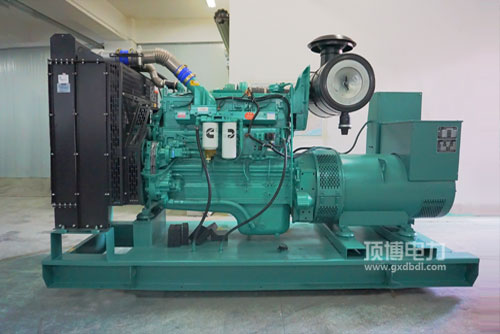

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用汽车发驱力然油经济增长性好: 为先进的然油掌控软件软件系统，独具的STC、ESTC 分等级掌控软件软件系统，层次性规划的活塞环顶端进行汽缸，进行高压喷洒于然油，有效做雾化，进行点燃有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用起因素瞬态性能方面比较好: 完善的起因素局部制定，听取康明斯独有的EFC操作系统，调节精确值高，回复日子快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用发起机升输出高: 纵向装修设计紧凑型.形状布置房间有效率，行驶平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号 QSNT. QSK19. QSK38. QSK50需要满足中国国家非发展第三步分阶段及中美洲Tier2. Tier 3排放标准法规标准必须。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具可要性好， 汽车发驱力运动及服务器维护的保养连锁便利店，直接费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

瓦数范畴 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮寸尺 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯发电站用启心理的特征：体型小， 解压缩变高， 排水槽气体受热，方便于重启，移动式车载影音电压的必选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启思想参数	长用电率(kW)Prime Power	备用电源效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
